    Configuring Cellular Interfaces

    The AirLink RX55 has two SIM card slots that support the cellular interface. By default, the SIM card in the upper slot (slot 1) is the active SIM card.

    Cellular Configuration

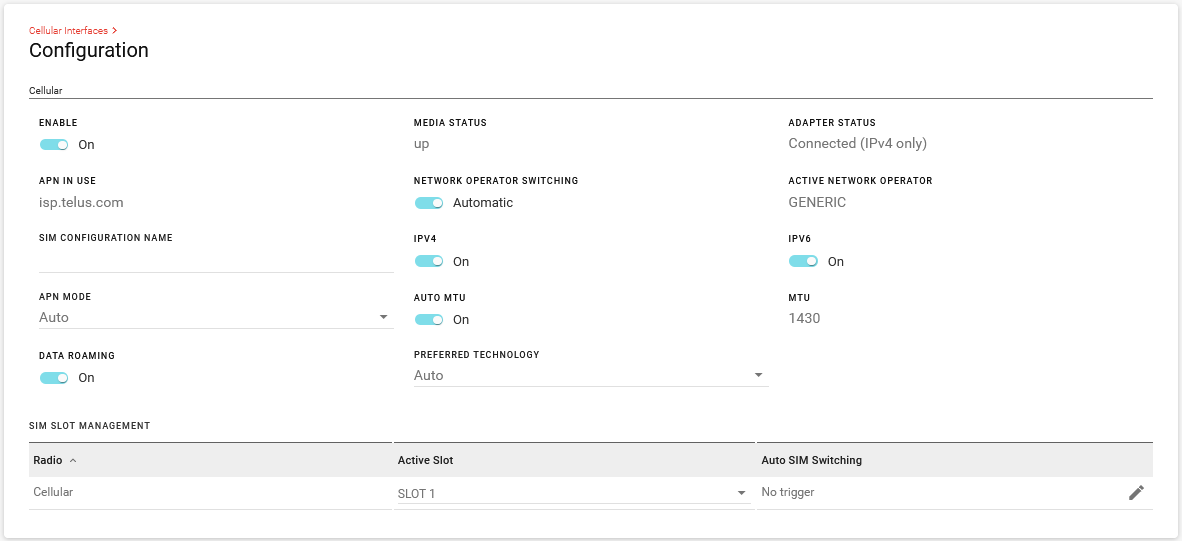

    To configure cellular interfaces, go to Hardware Interfaces > Cellular Interfaces > Configuration.

    • ENABLE
    • MEDIA STATUS
    • ADAPTER STATUS
    • APN IN USE
    • NETWORK OPERATOR SWITCHING: By default, the router automatically selects the network operator. To force the router to use a specific network operator, change NETWORK OPERATOR SWITCHING to Manual, and then select a Network Operator from the list.
      • Automatic (default): When the router powers on or reboots, it automatically selects and uses the appropriate radio module firmware for the active SIM card.
      • Manual: The router does not automatically select the appropriate radio module firmware when it is powered on or rebooted. You must select the Network Operator.
    • ACTIVE NETWORK OPERATOR
    • SIM CONFIGURATION NAME: By default, the installed SIM(s) and associated configuration(s) are included in the SIM Database. You can enter a name for the current SIM Configuration in this field. The name appears in the SIM Database.
    • IPV4: Turn On to allow the mobile network to assign the router an IPv4 address. Turn Off to disable IPv4.
    • IPv6: Turn On to allow the mobile network to assign the router an IPv6 address. The IPv6 address and routing information are passed to the LAN clients so that they can acquire IPv6 addresses and pass IPv6 traffic over the mobile network. Turn Off to disable IPv6.
    • APN MODE: Auto, Manual, Multi

    If the router does not automatically connect to the network, contact your Mobile Network Operator to confirm the APN and activation status of your router. You may need to set APN MODE to Manual and enter your carrier’s APN and other credentials.

    When APN MODE is set to Manual, set the following:

    • MANUAL APN
    • AUTHENTICATION PROTOCOL: None, PAP, CHAP, AUTO
    • AUTHENTICATION USERNAME
    • AUTHENTICATION PASSWORD

    • AUTO MTU: By default, AUTO MTU is On. You can turn AUTO MTU off and manually configure MTU (Maximum Transmission Unit in bytes) if you have VPN issues, and as directed by your service provider.

    • DATA ROAMING: Enables or disables roaming on the active SIM. When OFF, the active SIM does not use data when roaming.

    • PREFERRED TECHNOLOGY: Restrict the router to using a specific cellular technology: Auto (default), 3G Only, 4G Only, 5G Only

    SIM Slot Management

    The AirLink RX55 has two SIM card slots and is capable of supporting a primary and secondary SIM card. By default, the SIM card in the upper slot (slot 1) is the primary SIM card.

    When the RX55 powers up or reboots, it detects how many and which SIM cards are inserted. It connects to the cellular network using the primary SIM card, if present. If there is no SIM card in the primary SIM card slot, the RX55 connects to the mobile network using the secondary SIM card.

    In the SIM SLOT MANAGEMENT table, you can configure Automatic SIM Switching to respond to changes in the cellular network state, or you can switch SIM cards manually by selecting the Active Slot, as shown below.

    Auto SIM Switching

    If you have multiple SIM cards installed, you can configure the circumstances in which the router automatically switches the SIM card being used for network connectivity.

    To configure Auto SIM Switching, click Edit in the SIM SLOT MANAGEMENT table and enter the timeout settings you want to trigger a SIM switch.

    The configurable cases are:

    • Roaming: Switch SIMs if roaming for x minutes
    • Service Scan Timeout: After a Service Lost Timeout and an attempted switch to the secondary SIM, the Service Scan Timeout switches the router back to the primary SIM if no connection is made during the timeout. Similarly, if the router does not connect to the primary cellular network after startup or reboot, the Service Scan Timeout triggers the gateway to use the secondary SIM.
    • Service Lost Timeout: Switch SIMs if the network’s data connection is lost for x minutes
      • If Cellular > Monitor is enabled, the Cellular Monitor ping test determines whether the end-to-end connection is lost. If the ping test fails, the Service Loss Timeout begins.
    • Secondary Slot Timeout: If the router has been connected to the secondary SIM for x minutes, switch to the primary SIM. Use this parameter if you prefer the router to use the primary SIM whenever possible.

    SETTING DESCRIPTION DEFAULT RANGE
    Roaming

    If the router has been roaming for longer than the time (in minutes) configured in this field, it automatically switches to the inactive SIM card.

    This option is useful if the router frequently crosses an international border where there are different Mobile Network Operators in each country. You can set up the router with two SIM cards: one for a Mobile Network Operator in each country. The router then automatically switches to the SIM that is not roaming (after a configured delay) whenever the router crosses the border.

    		 Disabled 10 - 255 min
    Service Scan Timeout

    If the router has been trying to connect to a network for more than the configured time (in minutes), the router switches to the other SIM card.

    Note: If you are using Automatic SIM switching, this field should always be configured.

    The automatic SIM switch is initiated if the router is unable to establish a data connection or if the SIM card is unable to register on the network. If this is a new SIM card, check that the APN in Use is correct and that it is able to register on the network.

    		 Disabled 10 - 255 min
    Service Lost Timeout

    If the data connection is lost for more than the configured time (in minutes), the router switches to the inactive SIM card.

    Tip: If you prefer to use the Primary SIM account as much as possible, configure the Non-Primary Network Timeout and the Service Scan Timeout so the router will periodically check, and switch back to the Primary network when it becomes available.

    		 Disabled 10 - 255 min
    Secondary Slot Timeout

    If the router has been connected to a network using a secondary SIM card for the time configured in this field (in minutes), it automatically switches to the primary SIM card. This allows you to configure the router to fall back to the primary network if, for example, the data rate is better on the primary network. Note that the router will switch SIM cards again if the Service Lost Timeout threshold is met again. Example: After switching back to the primary SIM card (with the Service Lost Timeout set to 30), if there is a service loss for 30 minutes, the SIM will switch to the non-primary SIM card and the Non-Primary Network Timeout begins again.

    		 Disabled 10 - 255 min

    Multi-APN Configuration

    When using a SIM that allows for multiple APNs, you can configure additional APNs.

    To configure an additional APN:

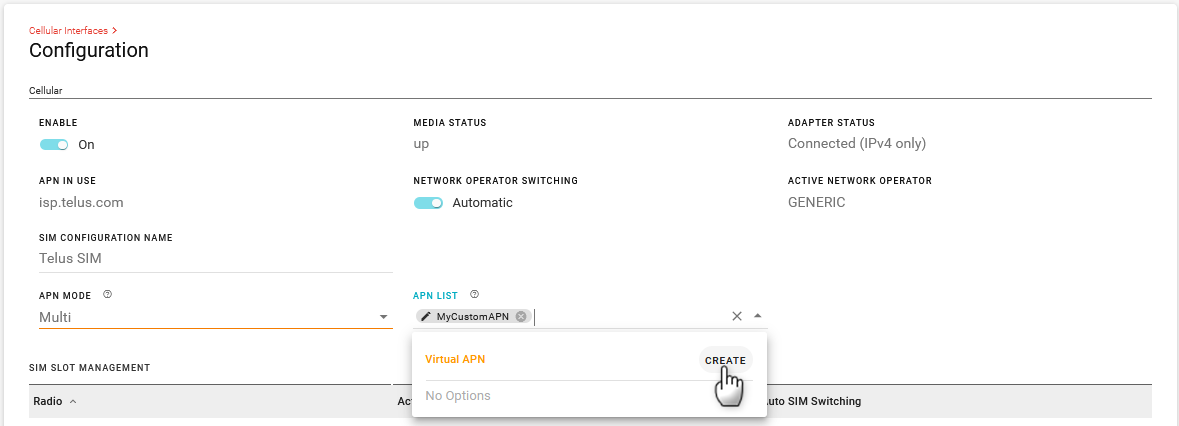

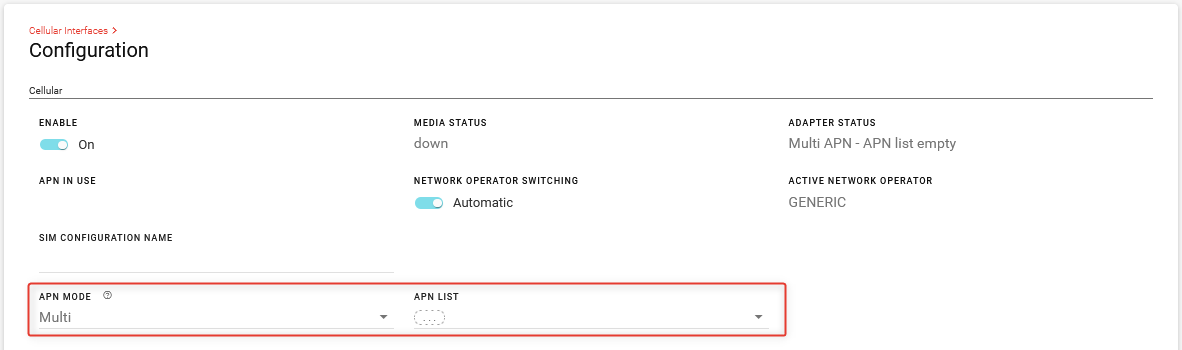

    1. Under APN MODE, select Multi.

    2. In the APN List, click CREATE. The Create New Virtual APN configuration screen appears.

    3. Configure the APN settings and then click CREATE.

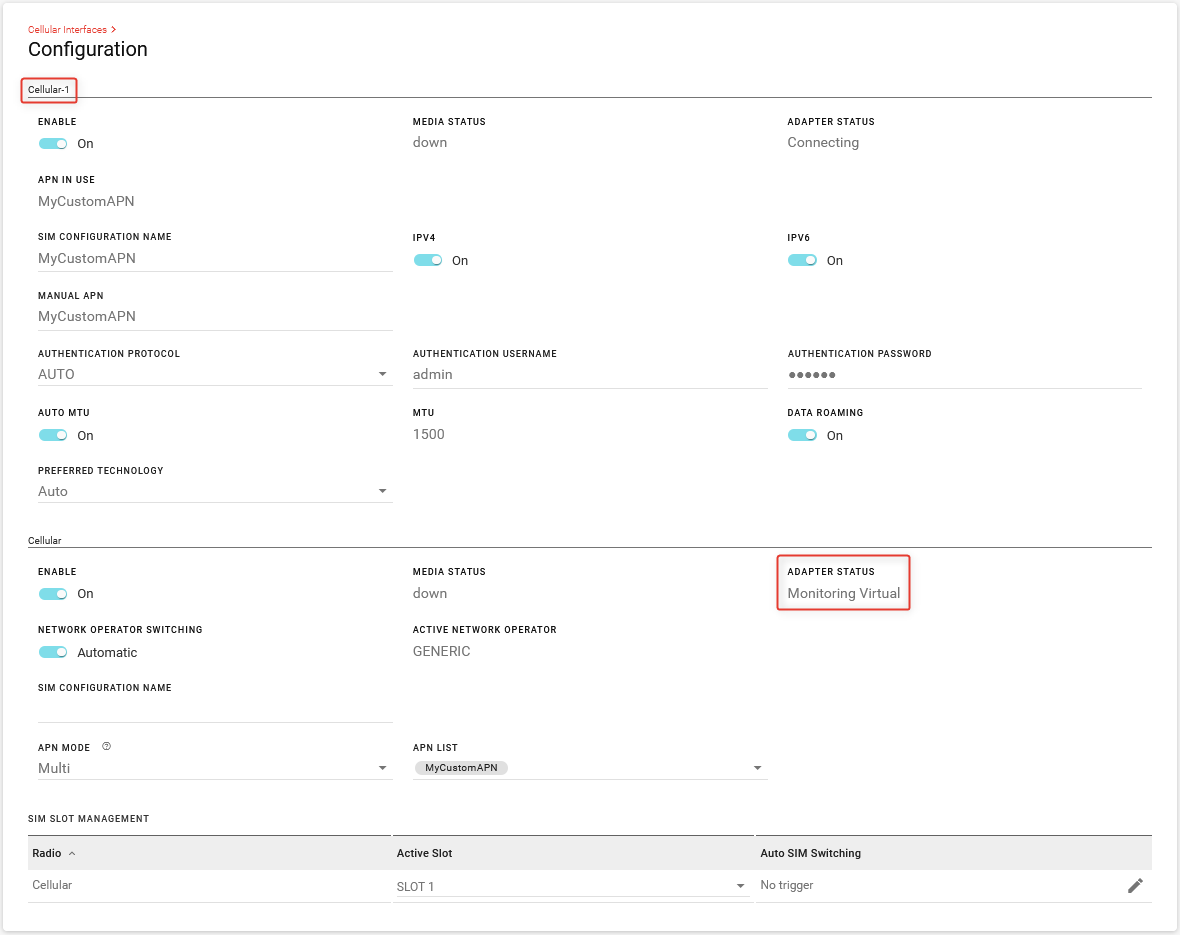

    You will see the Cellular Interface settings for each new APN that you create below the “parent” Cellular interface. The parent Cellular interface status becomes Monitoring Virtual.

    In the example below, the main Cellular interface has the sub-interface Cellular-1. This additional APN, when enabled, is the potentially active interface when the Cellular interface is in Multi APN mode.
