    How to view VPN status

    The VPN status page shows you the state of VPN tunnels for your fleet of devices. At a glance, you can identify which devices have operational VPN tunnels, and which devices might need your attention.

    VPN status monitoring is supported for AirLink OS-powered routers running software version 5.0 or later on ALMS + Connectivity (ALMSC) accounts. The VPN status page reports information for IPsec and OpenVPN tunnel protocols.

    Limited VPN monitoring is available for AirLink OS-powered routers running software earlier than 5.0. VPN status will show whether tunnels are enabled/disabled, but will not correctly display the VPN tunnel name, VPN type, or state.

    Initializing Table Of Contents...

    Viewing VPN Status

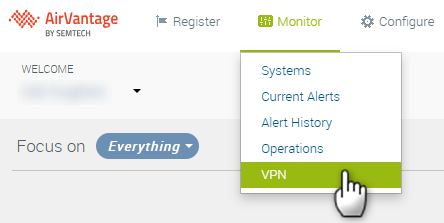

    To view the VPN status of your fleet, go to Monitor > VPN.

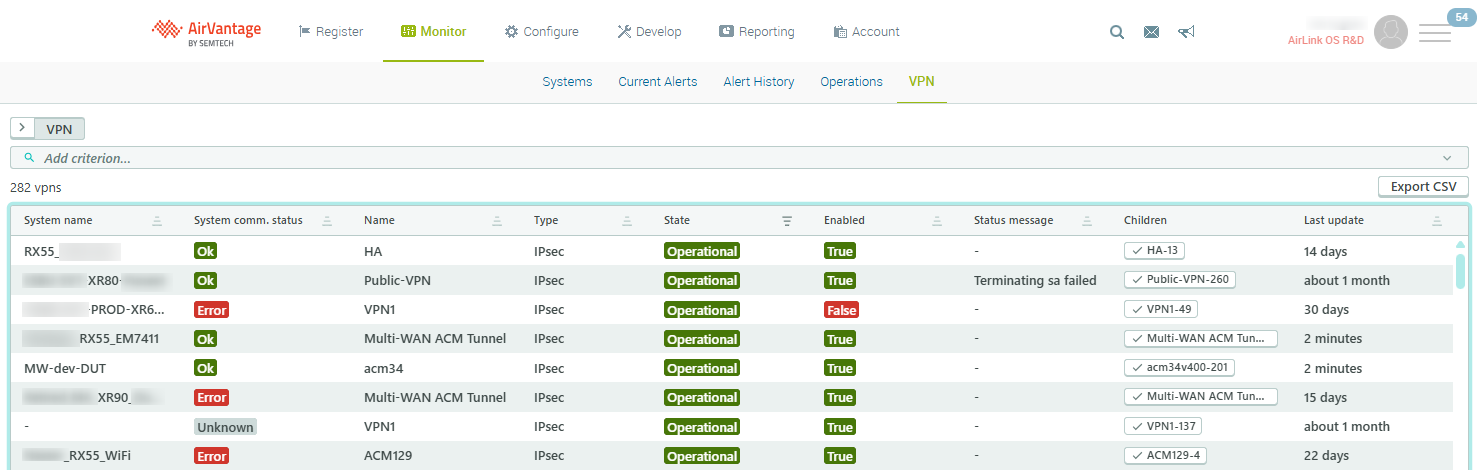

    The VPN status table shows you VPN information for all AirLink OS-powered routers in your account.

    To update the table, you must manually refresh the page.

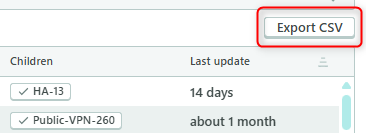

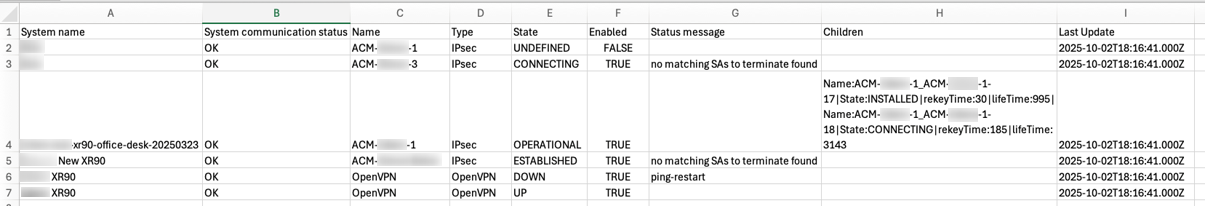

    You can also click Export CSV to download the table as a .csv file. The .csv file will contain status information for all columns in the table, and will contain full details (state, rekey time and life time) for each Child SA in the Children column, as shown below.

    For information about configuring VPN in AirLink OS, see the AirLink OS documentation.

    Filtering, Showing and Sorting Table Data

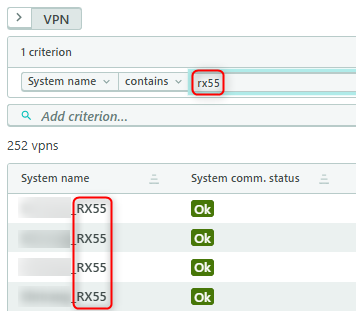

    You can use the filter above the table to locate specific systems, VPN tunnel types, or other criteria.

    You cannot filter the table for Children or Last update.

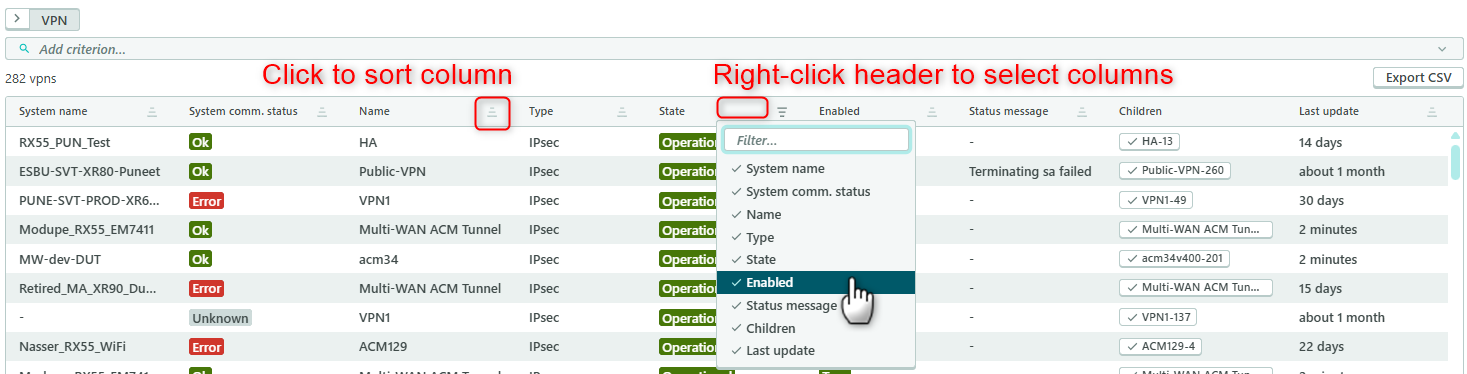

    You can sort data and show/hide table columns as shown below.

    You cannot sort the Children column.

    VPN Status Table Columns and Values

    This section describes VPN status data in more detail.

    COLUMN NAME DESCRIPTION POSSIBLE VALUES NOTES
    System name Name of the system in ALMSC Text

    System comm. status Current communication status of the system
    • Error
    • Undefined
    • Ok
    • Pending
    • Warning
    • Blocked

    Name Configured VPN tunnel name Text

    Type VPN protocol type used
    • IPsec
    • OpenVPN

    State Current operational state of the VPN tunnel

    IPsec tunnel:

    • OPERATIONAL
    • CREATED
    • CONNECTING
    • ESTABLISHED
    • HALF_OPEN
    • INIT
    • PASSIVE
    • REKEYING
    • REKEYED
    • UNDEFINED (not reported)

    OpenVPN tunnel:

    • UP
    • DOWN

    ALMSC-calculated state for IKE

    OPERATIONAL: ESTABLISHED and at least one child SA state is INSTALLED
    Enabled Indicates if the VPN tunnel is enabled in AirLink OS
    • FALSE
    • TRUE

    Status message Detailed VPN status information Text Empty for OpenVPN tunnels
    Children

    Child Security Associations (SAs) associated with the VPN tunnel. A tunnel can have multiple Child SAs.

    Includes the following details:

    • STATE
    • REKEY TIME
    • LIFE TIME
    • State of the child SA

      • CONNECTING
      • CONFLICTING
      • CREATED
      • DELETING
      • DESTROYED
      • INIT
      • INSTALLING
      • REKEYING
      • REKEYED
      • RETRYING
      • UNDEFINED
      • INSTALLED
    • Remaining time before the child SA is rekeyed
      • Number in seconds
    • Lifetime duration of the child SA
      • Number in seconds

    Available for IPsec tunnels only.

    Rest the pointer over a Children status icon to view all Child SA details.

    Last update Time that any VPN data point was most recently updated. Relative time (“7 days”, “about 1 month”, “about 4 hours”, for example)

    Rest the pointer over the relative time to view the exact update time.
